Gas At The Tap
On experiencing the ease with which housewives in Mumbai & Baroda use cooking gas, which is with piped gases, the housewives in other regions are envious. Similar to all other utilities such as power, water, cable TV. Cooking Gas can also be made available to each house. This system is called LPG Reticulated System. Gas Projects has been one of the pioneers and has commissioned various projects across the country to offer such solution to buildings as well as big housing complexes. |
| |
| Storage Of LPG |
| • |
|
Cylinder Manifold (GOT): Suitable for buildings with up to 100 flats. |
| • |
|
Liquid Off Take (LOT) : 47.5 Kg Cylinder Manifold Suitable for buildings with more than 100 flats. |
| • |
|
Bulk Tanks : Suitable for complexes. |
|
| |
| Features |
| • |
|
Automatic Change Over to ensure continuous flow. |
| • |
|
Over Pressure Shut off Valves to ensure safety. |
| • |
|
Under Pressure Shut off Valves to ensure satisfactory burning characteristics. |
|
| Minimize the quantum of free float LPG. |
| |
| TANKS - Reticulated |
| If the total connections are above1000 we can plan with Bulk LPG storage in tanks. Bulk storage LPG tanks are specialized tanks available in all 3 configurations: |
| • |
|
Underground |
| • |
|
Mounded |
| • |
|
Aboveground |
|
| Tank designed and constructed with appropriate Safety fittings, Pump...etc |
| |
| In case of reticulated systems due to space constraints generally Mounded or Under Ground Tanks are preferred. Which are delivered with requisite coating for corrosion protection. |
| |
| Standard Capacity |
Capacity LPG
( Kg ) |
Dimensions
( I. D.in mm) |
Approximate Weight
(Kg) |
| 3500 |
1720 |
3400 |
| 4700 |
1720 |
4500 |
| 9400 |
2080 |
5750 |
| 18800 |
2530 |
8500 |
|
| |
| Standard technical specification. |
| CODE OF CONSTRUCTION |
: |
IS 2825, ASME Section VIII Div- 2 |
| DESIGN PRESSURE |
: |
22 Kg / cm2(g) , 14.5 cm2(g) |
| RADIOGRAPHY |
: |
100 % |
| HEAT TREATMENT |
: |
Yes |
| COATING |
: |
450 Microns total |
| UPTHRUST DESIGN |
: |
Considered |
| DESIGN FOR EXTERNAL PRESSURE |
: |
Considered |
| |
|
|
|
| LPG Vapouriser |
GASOR Gas Vaporizer are user friendly Vaporizer carefully designed, engineered and manufactured for Reticulated application. Vaporizer is also known as Evaporator is used to convert the compressed gas from liquid phase into gas phase which is required in case of Bulk storage & Liquid off Take (LOT) System.
GASOR Vaporizer are available in various capacities and can be specially built for customize applications. The design is based on supply of energy to water / glycol mixture electrically which in turn heats the liquid in the LPG Coil. |
| |
| Features |
| • |
|
PESO approved. (Department of Explosives) |
| • |
|
Designed, Manufactured and components are complied with NFPA Pamphlet 58. |
| • |
|
Steel Tube Heating Coil and designed, manufactured as per the Pressure Vessel Code. |
| • |
|
100% efficiency. |
| • |
|
Low Temperature Operation. |
| • |
|
Fully Automatic with all operating safety control. |
|
| |

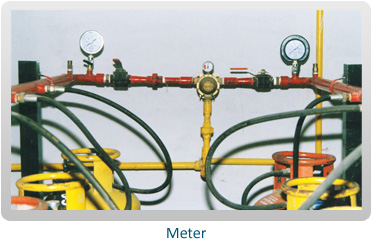

| Manifold |
| Storage and Bulk Handling can be either |
| • |
|
Packed Cylinders attached to the Manifold |
| • |
|
Storage of LPG in Bulk in a LPG Storage Tank. |
|
| |
The Cylinders or the Bulk storage tank is then connected to the Apartments with help of Manifold The Cylinder Bank Manifold shall consist of 2 arms, one, which is operational, and the other being a stand by. |
| • |
|
Packed Cylinders connected to Manifold System can service Apartment up to 250 Domestic connection. |
| • |
|
Multiple Manifold can service up to 1000 Domestic connection. |
| • |
|
For Colonies and Complexes which have more than 800 Domestic connections Bulk Storage Installation is viable. |
|
| |
 |
| |
| The Metering Unit shall be provided at a convenient location in or outside the household. Preferably the Metering Units installed outside the household shall increase the security of the householder. The Metering Unit consists of the following: |
| • |
|
Isolation Valve |
| • |
|
2nd Stage Regulator |
| • |
|
Meter |
| • |
|
Connectors |
| • |
|
Secure Box |
|
| |
| The Metering Unit is provided with a 2nd Stage Regulator which shall reduce the pressure upto 28 millibar of pressure. The Regulator is immediately connect prior to the inlet of the Flow Meter. The Flow Meter is calibrated the function at 28 millibar a constant pressure. The Gas Meter are diaphragm type Gas Meter conforming to the British Standard BS-4161 Part V and work at a constant pressure of 28 millibar. The Gas Meter have a various capacities and the Technical Specifications is as under: |
